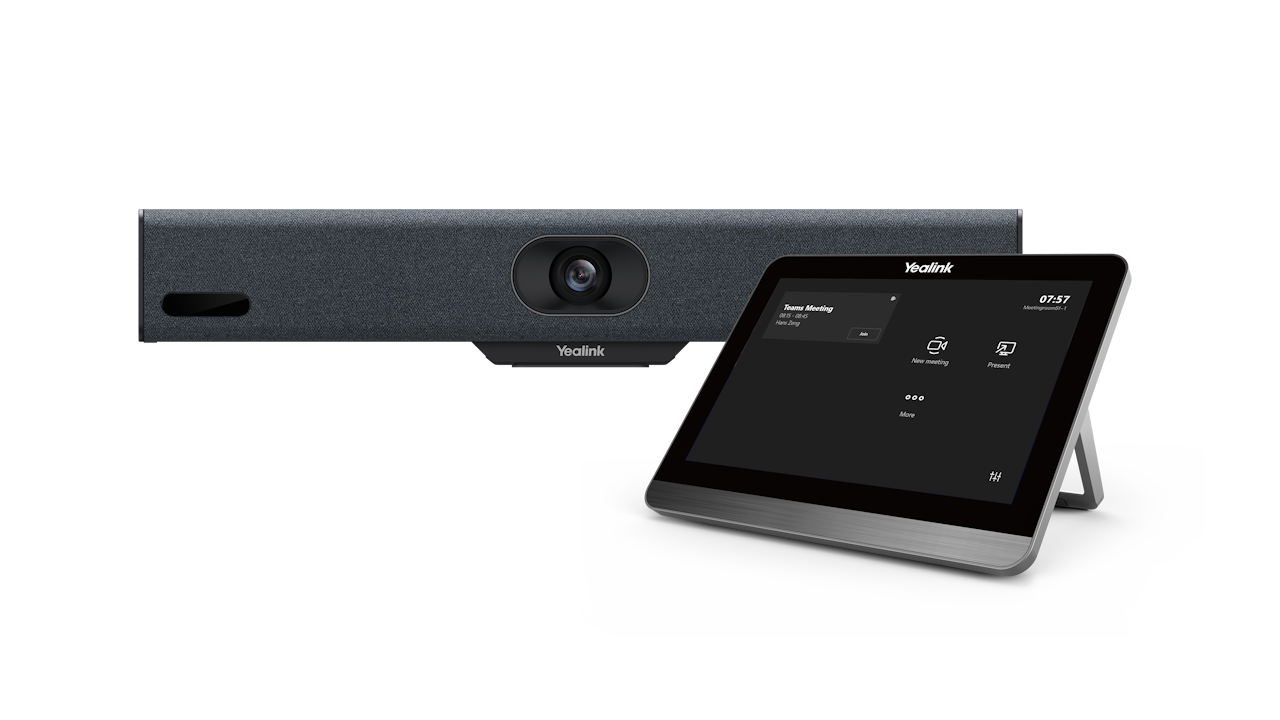

The all-in-one MeetingBar A10 is based on Android and brings Microsoft Teams audio and video capture to your huddle spaces. The A10 provides a powerful video and voice experience that is perfect for small spaces. The bar includes a 120° field of view camera, AI technology, and 8 MEMS microphone array and speaker. It is cost-effective, less than 400mm, and uses simple plug-and-play with a CTP18 controller.
Teams Video Collaboration for Home Office, Huddle Rooms and Small RoomsThe Yealink MeetingBar A10 caters to all your meeting needs, perfect for small and huddle spaces. It''s small enough to fit anywhere, with built-in TV clamps, so you can set up in minutes and kick off your meetings.Fantastic View and Awesome VoiceWith 120° field of view, everyone in your conference will be seen without adjusting their cameras. The A10 automatically cancels out redundant background noise. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm delivers clear sound for both sides clearly, so there is no cross-talk.
Smart Video Conferencing with AI Technology
With 4.5T hash power, the MeetingBar A10 supports strong AI image processing capabilities, such as face and voice recognition. Featuring AI technology, including Auto Framing and Speaker Tracking, A10 'frames' the groups automatically according to the number and position of the participants; automatically zooming in on the speaker without adjusting the camera.
Keep Tabs on Everything RemotelyThe Yealink MeetingBar A10 can be monitored, controlled, and upgraded remotely with Microsoft Teams Admin Center and Yealink Management Cloud Service accounts. Firmware updates, configuration updates, and troubleshooting can also be done remotely. 技术参数
Android version
11
Aspect ratio
16:10
Audio features
Noise Cancellation
Battery information
48V 0.7A
Camera
120° DFoV, 106° HFoV, e-PTZ, 4x digital zoom
Connectivity
Internet on console
Console
Yealink CTP18
CPU
Octa-core 4 x Arm Cortex-A78 2.2GHz + 4 x Arm Cortex-A55
Dimensions
202mm x 151mm x 100mm
Maximum consoles
1
Microphone
8 mics, 4.5m pickup range
Position
Tabletop
Product dimensions
380mm x 55mm x 55mm
Product weight
A10: 1.48kg, CTP18: 0.594KG
Screen Resolution (pixels)
1280 x 800
Screen size diagonal
8 Inch
Warranty Information
2-year limited manufacturer hardware warranty
What''s included in the box?
Yealink MeetingBar A10 with adjustable TV clamp 3m Ethernet cable 1.8m HDMI cable 48V 0.7A Power Adapter Wall Mounting Bracket 3M Tape*5 CTP18 Touch Console
Wired connectivity
USB-A, USB-C, Yealink VCH port, Line in/out, Ethernet
