The all-in-one MeetingBar A40 is based on Android and brings Microsoft Teams audio and video capture to your small to medium spaces. The A40 provides a powerful video and audio experiences. The bar includes a 120° field of view camera, AI technology, and 8 MEMS microphone array and 2 stereo speakers. It uses simple plug-and-play with a CTP25 controller.

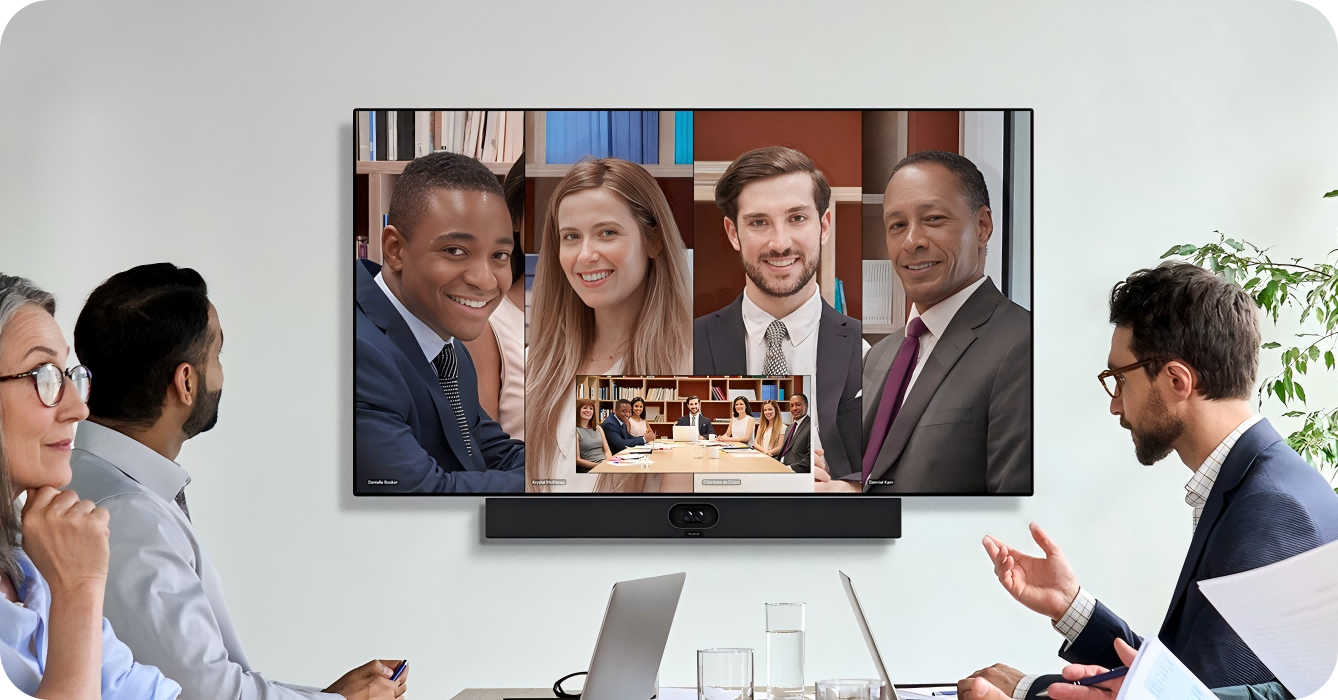

AI-Powered VideoMeetingBar A40 has dual lenses, and its fixed-focus stitching solution combines the images from the two lenses to achieve a higher pixel density, resulting in clearer and sharper image quality. The MeetingBar A40 intelligent AI features include on-device IntelliFocus, video Fence, and other basic AI features. IntelliFocus displays close-ups of the last 4 active speakers separately, allowing more participants to appear on the screen and engage fully with the other party, thereby making the meeting more realistic.

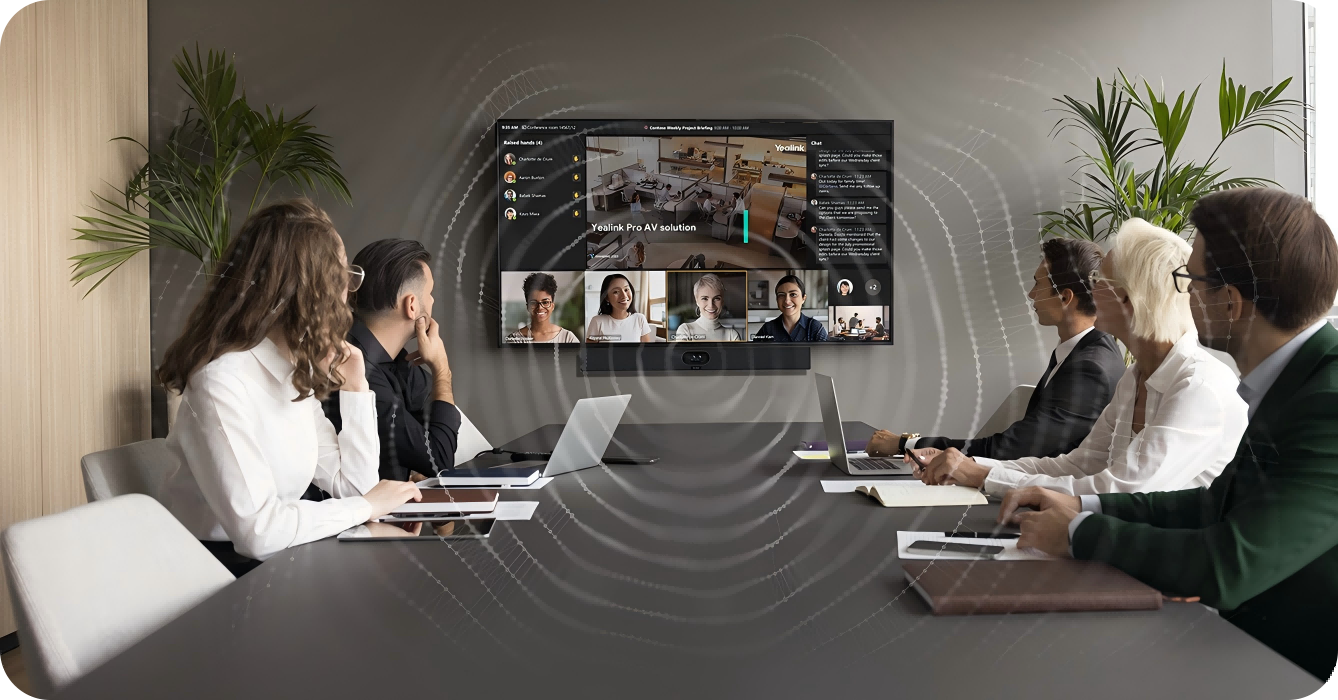

AI-Powered Audio
MeetingBar A40 provides high-quality full-duplex audio with AI-Enhanced Noise Cancellation and echo cancellation. It also supports line-in and line-out to ensure audio quality, and supports synchronous output of audio streams to third-party assistive listening systems.

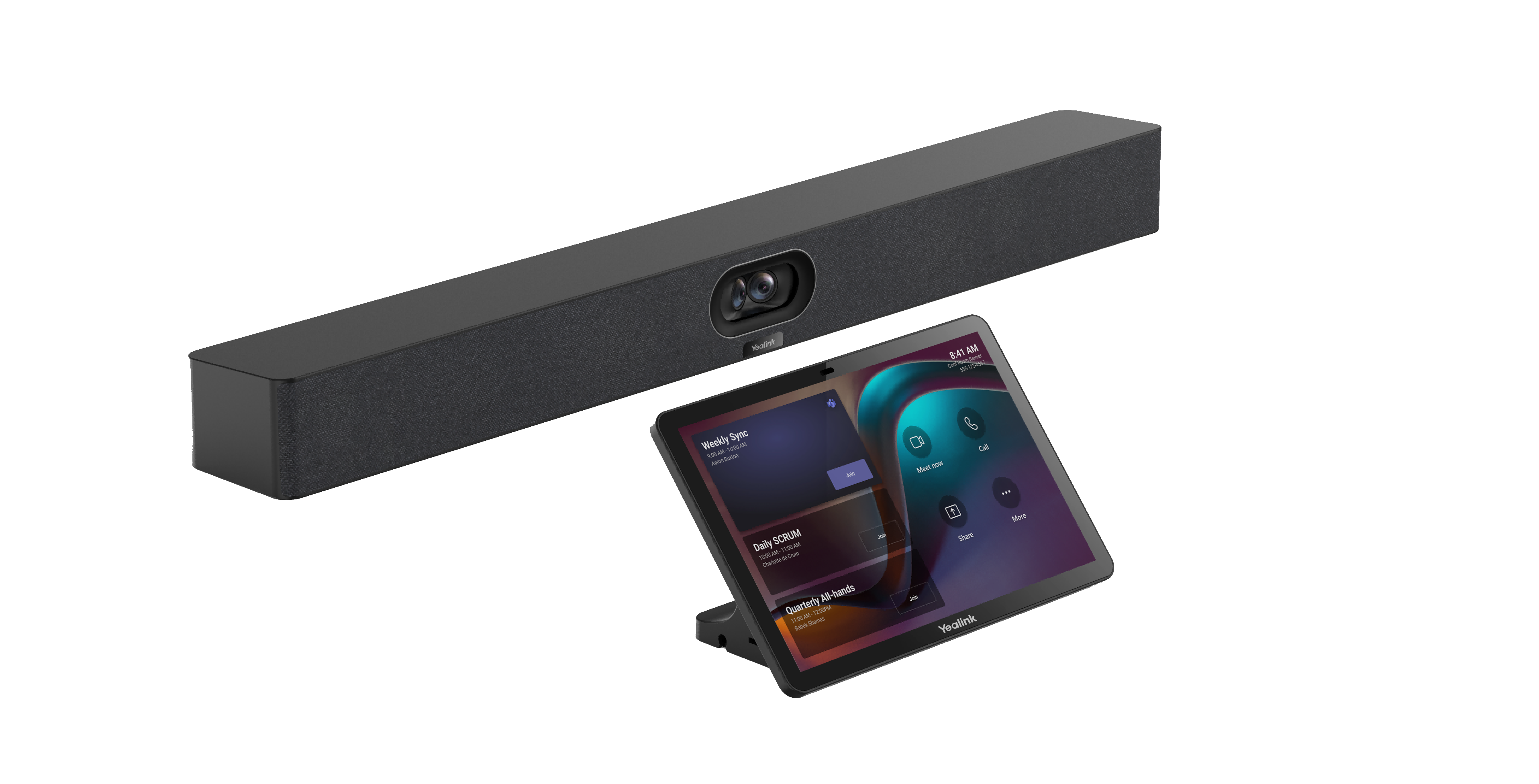

One-Cable SolutionMeetingBar A40 features a direct connection to CTP25, enabling a simplified login process because you only need to log in once. It uses USB-C support content sharing, PD power and so on. This streamlined login experience saves time and improves convenience for users. 技术参数
Model name
CTP25
Description
A 10.1-inch touch console for excellent meeting control.
Position
Tabletop, support mounting on the wall with mounting bracket included in the package
Connectivity
VCH (RJ45)
Maximum consoles
1
Screen resolution (pixels)
WXGA
Aspect ratio
16:10
Screen size (diagonal)
10.1 inch
Security
Kingston lock slot, RJ45 port connection to Lock device safely
Model name
MeetingBar A40
Description
MeetingBar A40 is built in 2 Stereo Speakers
Speaker Windows name
Yealink MeetingBar A40 Audio
Position
Tabletop, wall mount, Top of TV, tripod
Speakers
2
Output in watts
10
Output in dB
112dBSPL 10W @0.1m
Stereo support
Yes
Model name
MeetingBar A40
Description
MeetingBar A40 is built in 8 MEMS microphone array, with AI-enhanced Noise Cancellation and Reverberation Suppression technology.
Pickup radius
20ft (6m)
Max microphones
1
Microphone placement
Front of room
Special features
Built-in 8 MEMS microphone array 6-meter voice pickup range 4-meter quality voice pickup range Stereo speakers Support 2x expansion microphone Yealink AI Audio 2.0: • Intelligent noise cancellation technology • Full-duplex technology • Echo cancellation technology
Model name
MeetingBar A40
Description
MeetingBar A40 combine 2x 48MP lenses
Microsoft Teams streaming
1080p
Horizontal field of view
110°
Vertical field of view
54°
Diagonal field of view
120°
Zoom
6x Digital Zoom
Pan/tilt
Digital
Pan/tilt angle
Digital
Mount options
Tabletop, wall mount, Top of TV, tripod
Included mount
Mounting Kit for the camera
Included cable length
8ft (2.5m)
Separate power adapter
Yes (included)
Special features
IntelliFocus Video Fence Auto Framing Speaker Tracking Image Super Resolution Technology Multi-Focus Picture-in-Picture
