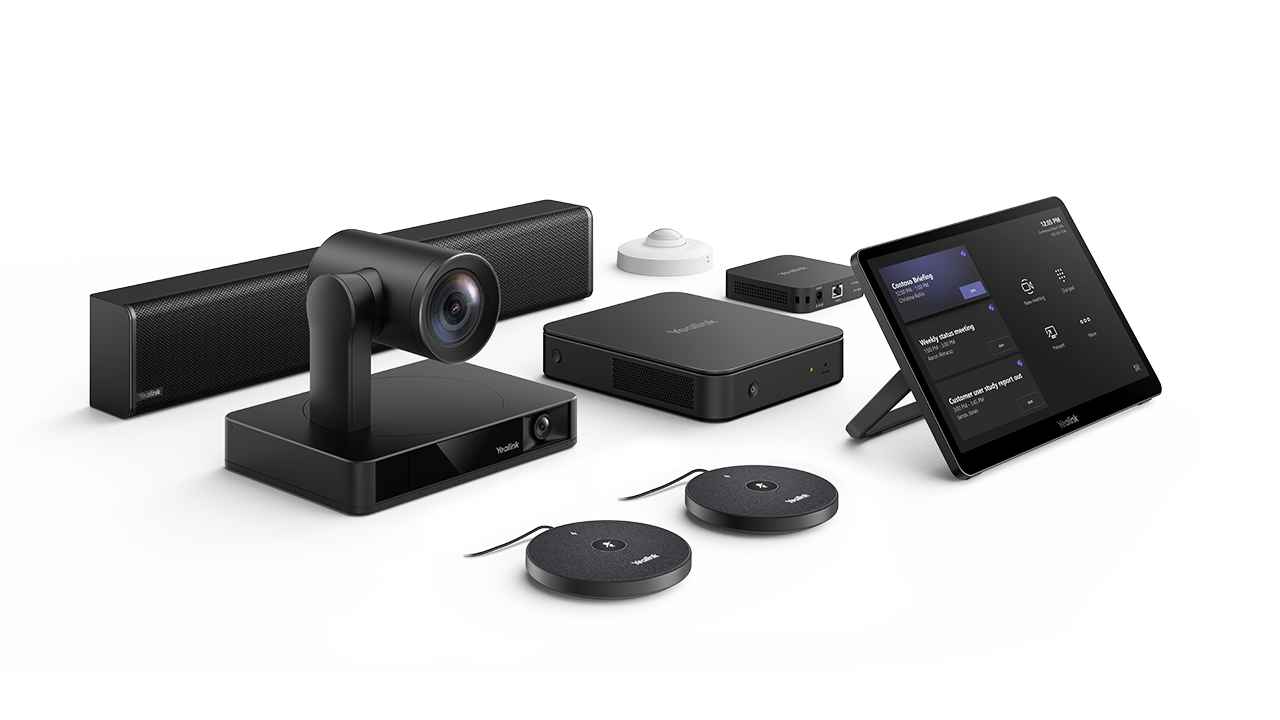

Designed for large meeting rooms, the Yealink MVC860 Microsoft Teams Room system is a bundle video conferencing system with UVC86 intelligent tracking camera, 2 VCM35 microphones, MSpeakerII soundbar, MCore Pro mini-PC, MTouch Plus touch panel, and RoomSensor. This powerful bundle combines cutting-edge technology to deliver seamless, intelligent collaboration with both internal and external users. *Product package may vary in different regions.
Effortless Multi-Console Collaboration

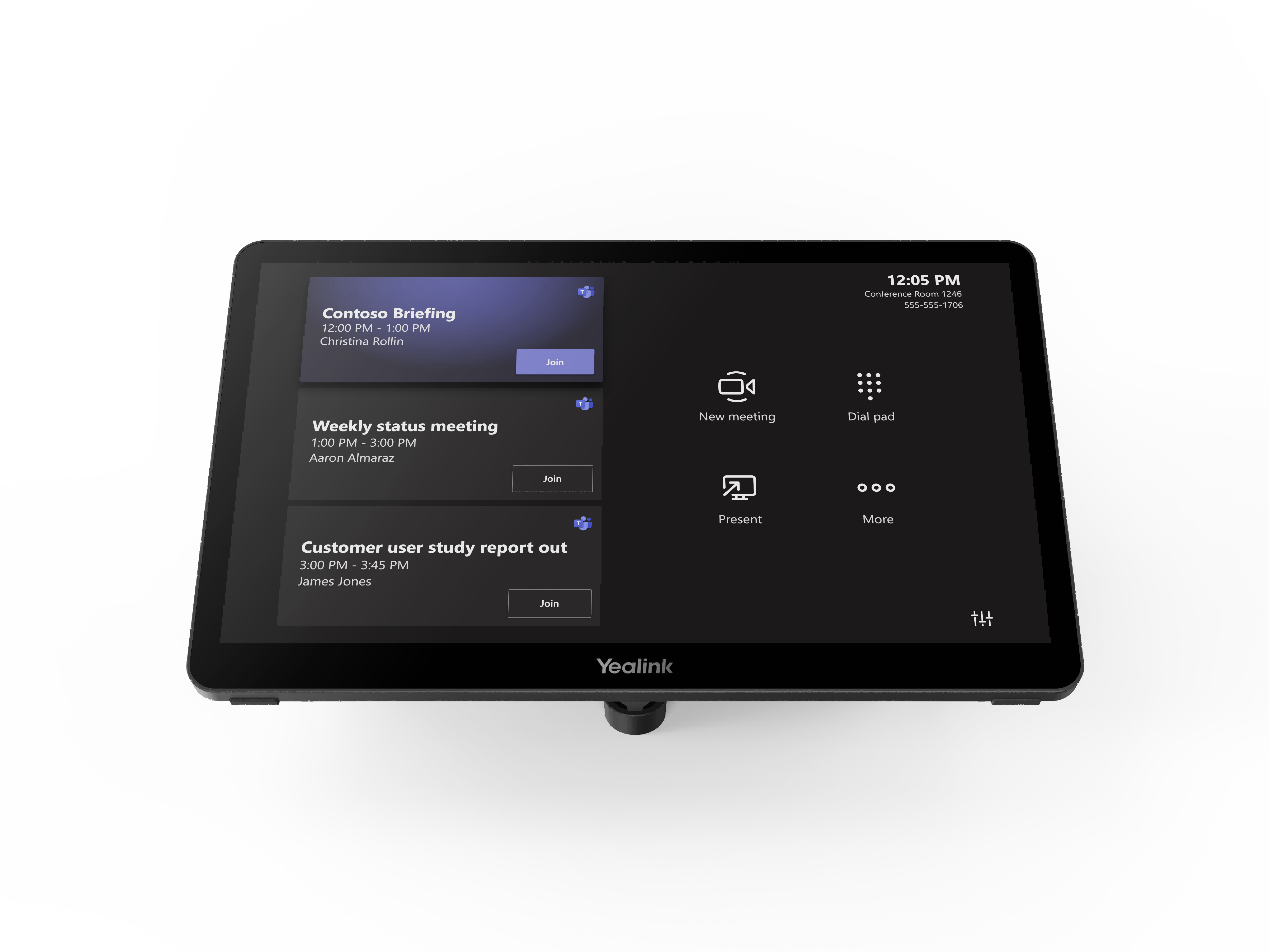

The new MTouch Plus features a spacious 11-inch screen for improved visibility and convenience meeting controls. You can also set up multiple touch panels within the same room, and whether on the wall or table for flexible collaboration needs.
Dual-eye 4K Camera Tracks Every Movement

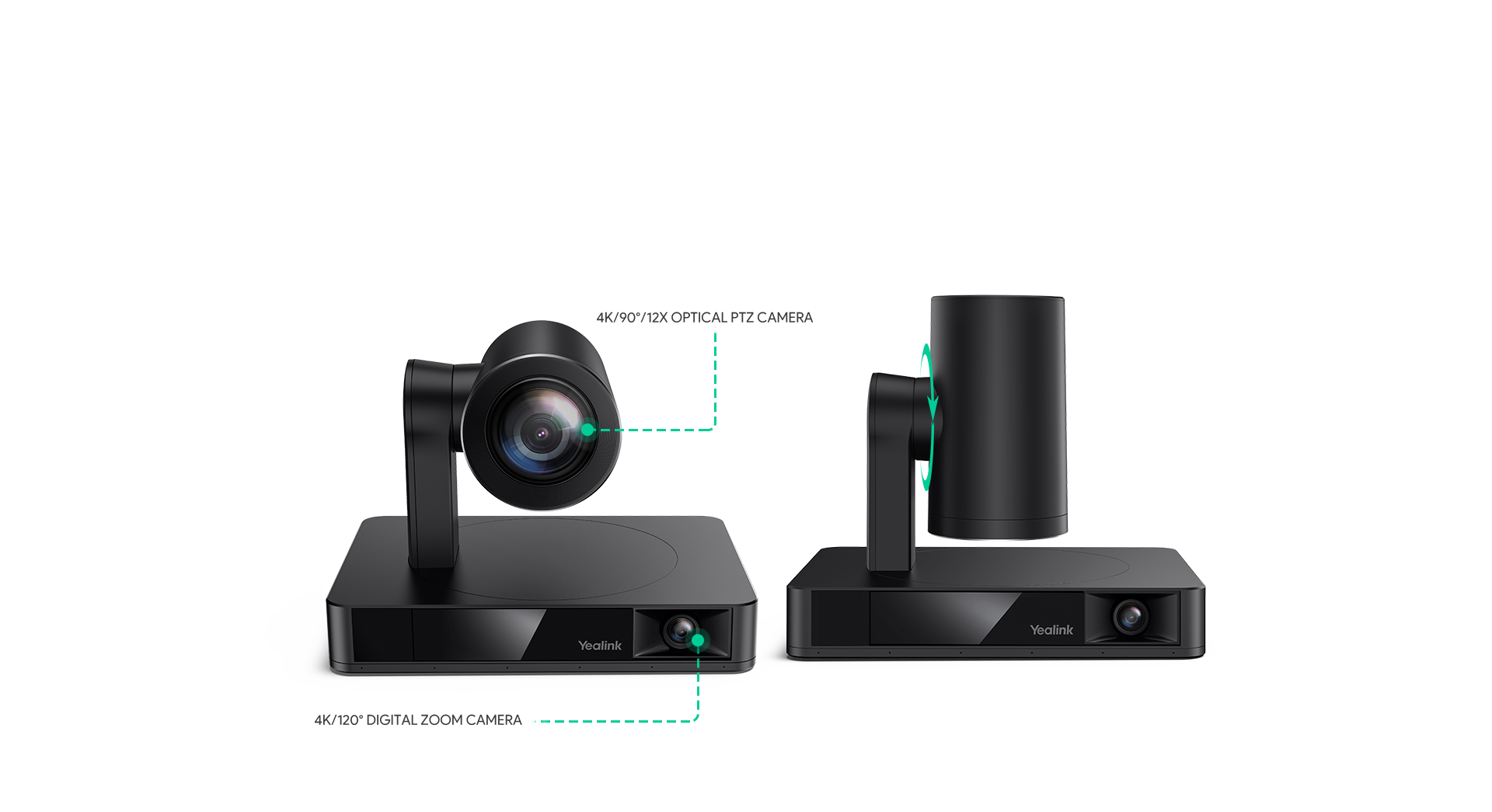

With its panoramic camera for real-time participant detection and a PTZ camera for capturing the best picture, the UVC86 camera ensures precise tracking of every movement in your Teams Rooms. Powered by AI-driven features like Conversation Mode in Speaker Tracking, and Segment and Stage Tracking in Presenter Tracking, this intelligent camera delivers a smart and effective meeting experience.
技术参数
| Model name | MTouch Plus touch console |
| Description | An 11.6-inch touch console with 1920 x 1080 resolution for excellent meeting control. |
| Position | Tabletop, support mounting on the wall with mounting bracket included in the package |
| Connectivity | VCH (RJ45) |
| Maximum consoles | 1 |
| Screen Resolution (pixels) | 1920 x 1080 |
| Resolution | FHD |
| Aspect ratio | 16:9 |
| Screen size diagonal | 11.6 Inch |
| Dimensions | 10.9 in (276mm) x 6.7 in (171mm) x 1.4 in (35mm) |
| Security | Kensington lock slot. Additional mounting options are available for table and wall. |
| Model name | MSpeaker II |
| Description | The Yealink MSpeaker II works with VCM34, VCM38, VCM36-W microphones for a high-quality audio solution, offering flexible mounting options for different room layouts. |
| Speaker Windows name | Yealink UVC86 Audio |
| Position | Tabletop or wall mount: top, bottom or side of display with included mounting kit |
| Speakers | 2 |
| Max extra speakers | 2 |
| Output in watts | 10 |
| Output in DB | 98dB SPL@8W, both +/-2dB at at ½m |
| Stereo support | Coming soon |
| Model name | VCM35 |
| Description | VCM35 is built-in 3-microphone array with a 20ft (6m) radius and 360° voice pickup range. It is an ideal solution for any conference room that needs the best audio experience. |
| Pickup radius | 20ft (6m) voice pickup range |
| Cortana certified | Not applicable |
| Microphones | Two VCM35 microhones included, each with built-in 3-microphone array 360-degree, 20-feet (3 meters) voice pickup range Optima HD Audio Yealink Full Duplex Technology Yealink Acoustic Echo Canceling Yealink Noise Proof Technology Muting the microphone with touchpad |
| Max microphones | 8 |
| Microphone placement | Tabletop |
| Model name | UVC86 |
| Description | Featured 4K sensor and 12x optical zoom, the UVC86 camera achieves a gorgeous video experience perfectly for medium rooms. |
| Microsoft Teams streaming | 1080p (camera supports up to 4K/30fps) |
| Horizontal field of view | 81° |
| Vertical field of view | 50° |
| Diagonal field of view | 90° |
| Zoom | 18x HD (12x optical/1.5x digital zoom) |
| Pan/tilt | Yes |
| Pan/tilt angle | ±100° Pan, +40°/-90° tilt |
| Mount options | Tabletop, wall mount, tripod or ceiling mount with mounting kit included in the package |
| Included mount | Mounting kit for the camera |
| Cable type | USB2.0 Type-B to Type-A |
| Maximum cable length | Extend up to 40 meters by Yealink USB to CAT5e extender |
| Included cable length | 8 Feet (2.5 Meters) |
| Separate power adapter | Yes (included) |
| Special features | Auto Framing, Speaker Tracking, Presenter Tracking |
| Maximum number of displays supported | 2 |
| Included | MCore Pro mini-PC MTouch Plus touch console RoomSensor UVC86 camera 2x VCM35 array microphones Yealink soundbar MSpeaker II RCH40 PoE switch (3) HDMI cable (2) Ethernet cable USB Type-C cable (with HDMI adapter) Yealink MCore Pro mount Yealink MTouch Plus mount Yealink UVC86 mounting kit Yealink MSpeaker II mounting kits |
