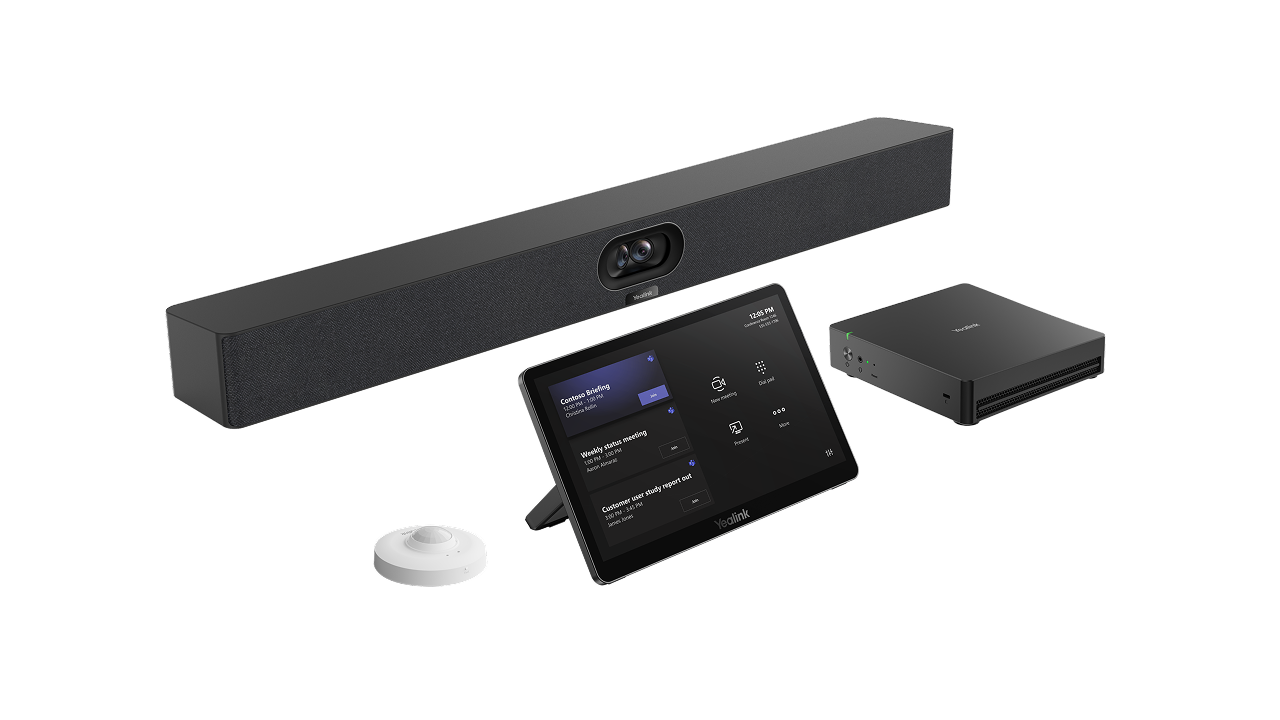

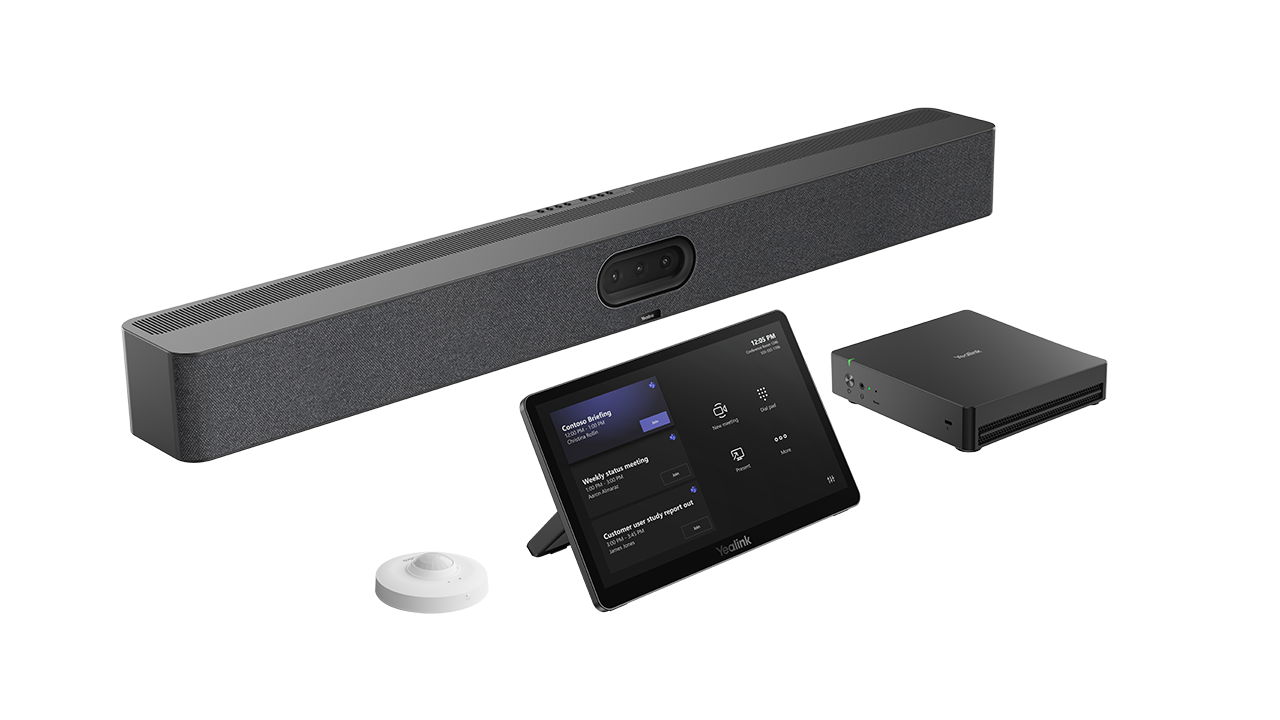

The Yealink S50 is a cutting-edge solution for Microsoft Teams Rooms, designed to enhance collaboration and is ideal for Medium meeting spaces. This set includes the new generation mini-PC MCore 4, the 11.6-inch touch panel MTouch Plus, the MeetingBar A50 all-in-one video bar with USB mode, and the intelligent detect sensor RoomSensor.
AI-Powered ViewThe SmartVision 40 intelligent AI features include on-device IntelliFocus, video Fence, virtual background and Multi-Stream IntelliFrame. IntelliFocus displays close-ups of the last 4 active speakers separately, allowing more participants to appear on the screen and engage fully with the other parties, thereby making the meeting more realistic. Microsoft's innovative Copilot technology is the foundation for the Multi-stream IntelliFrame technology. Active speakers (up to 4) are displayed as separate streams with their identities recognized. This ensures everyone receives equal screen space while empowering Copilot to deliver meeting summaries, insights, and action items seamlessly.
AI-Powered Audio
The SmartVision 40 provides high-quality full-duplex audio with AI-Enhanced Noise Cancellation and echo cancellation. It also supports line-in and line-out to ensure audio quality, and supports synchronous output of audio streams to third-party assistive listening systems.
技术参数
Model name
MTouch Plus
Position
Tabletop, Wall-mounted
Connectivity
RJ45
Maximum consoles
1
Screen resolution (pixels)
1920x1080
Resolution standard
FHD
Aspect ratio
16:09
Screen size (diagonal)
11.6"
Security
Kensington lock
Model name
SmartVision 40
Description
Yealink SmartVision 40 is an all-in-one video bar for small to medium rooms. It delivers cutting-edge audio and video communication capabilities, powered by advanced AI technology, ensuring crystal-clear sound and ultra-HD visuals. With intelligent full-duplex, IntelliFocus, and video fence, it redefines the video conferencing experience, bringing unparalleled clarity and efficiency to every meeting.
Microsoft Teams streaming
1080p
Horizontal field of view
Wide angle: 110° H
Vertical field of view
Wide angle: 54° V
Diagonal field of view
Wide angle: 120° D
Zoom
6x digital zoom
Special features
• Multi-Stream IntelliFrame • Auto Framing • Speaker Tracking • Picture-in-Picture (PIP) • IntelliFocus • Video Fence
Model name
MCore 4
Description
Yealink video conferencing AI PC
Connectivity
• 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 Type-A Port • 1 x MTouch Port (RJ-45) • 1 x LAN port for AV network • 1 × 10/100/1000 Gigabit Ethernet Port • 1 x Power Supply Port • 1 x 3.5mm headphone Port • 1 x reset port • 1 x Security Slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2
Dimensions
188 x 188 x 47.5 mm
Included
• MCore 4 Mini-PC • MTouch Plus Touch Controller • RoomSensor • SmartVision 40, USB all-in-one video bar • (3) HDMI cable • Ethernet cable • USB Type-C cable • SmartVision 40 Mounting bracket • SmartVision 40 Table-top stand • SmartVision 40 TV-clip mount • Yealink MCore 4 mount • Yealink MTouch Plus mount • Power Supply
